Zone Matrix - Compliance View

There are five zone compliance types:

• Adheres to Compliance Policy has all controls passing.
• Violates Compliance Policy has at least one control failing.
• Access Available, No Compliance Policy has rules allowing traffic from the source zone to the destination zone and currently no controls have been created. Excludes *any.
• No Access, No Compliance Policy has no rules allowing traffic from the source zone to the destination zone and currently no controls have been created. Excludes *any.
• Unused has no network segments in one or both compliance zones.

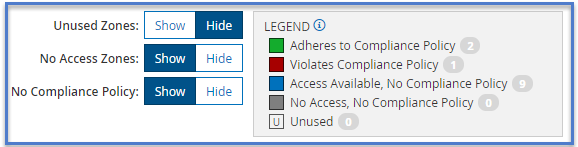

To filter the compliance zone matrix, click Show or Hide on the filter options.

• The number of access points will change based on the Show or Hide option selected.

Click Show or Hide to include or not include unused zones.

• The number of access points will change based on the Show or Hide option selected.
