APA Results

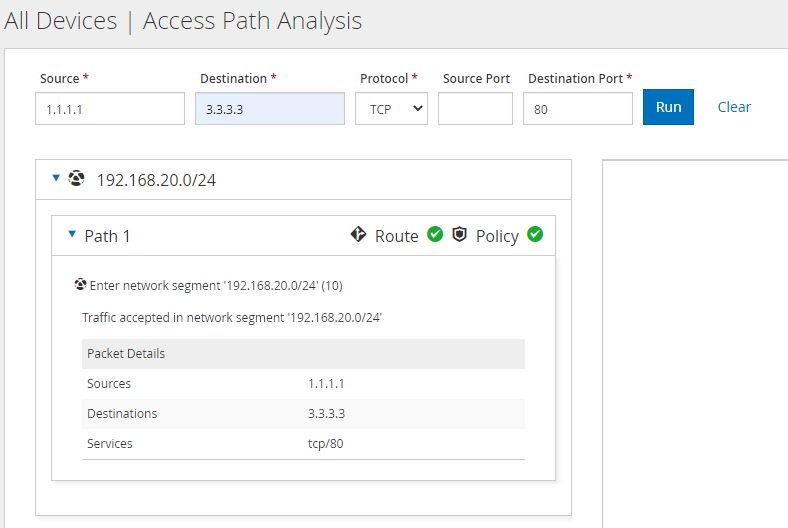

For All Devices
Each path the packet takes is outlined in the Paths and indicates whether the packet reached its destination regardless of a deny event.
- Click
Path # to expand the details of the trace.
This icon
will display if more than one device could potentially handle access from a single network segment.

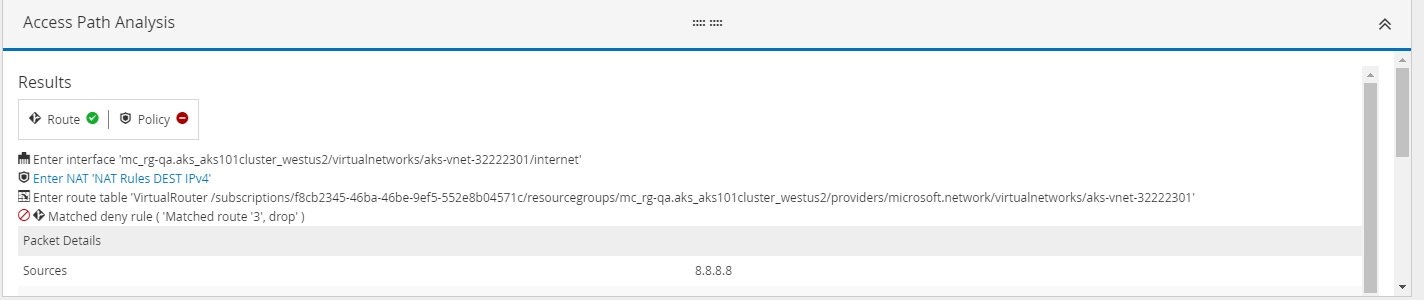

For a Specific Device
- Scroll to see all the details of the trace.
- Click linked path results to open the Policy View for the rule.
APA Icons
The APA results map includes the following icon types.
| Name | Image |
|---|---|
| Accept Security Rule |
|
| Ambiguity |
|
| Deny Security Rule |
|
| Device |
|
| Interface |
|
| NAT Rule |
|
| Network Segment |
|
| Policy |
|
| Route |
|
| Router / Switch |
|
| Routing Table |
|
| Supplemental Route |
|
| Traffic Management Device |
|
