APA Results

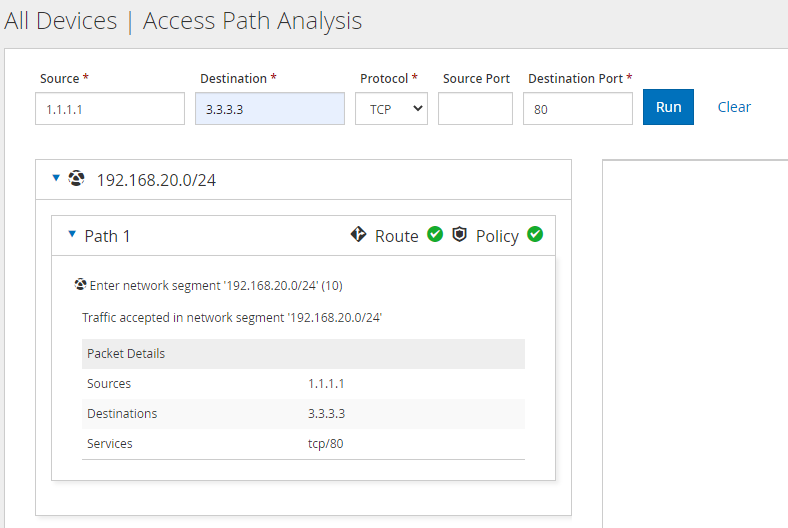

For All Devices

Each path the packet takes is outlined in the Paths and indicates whether the packet reached its destination regardless of a deny event.

  • Click Path # to expand the details of the trace.

This icon will display if more than one device could potentially handle access from a single network segment.

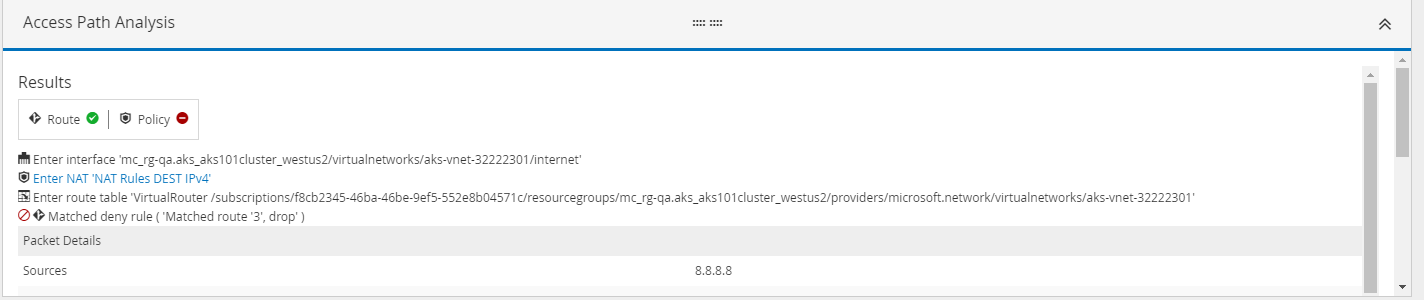

For a Specific Device

  • Scroll to see all the details of the trace.
  • Click linked path results to open the Policy View for the rule.

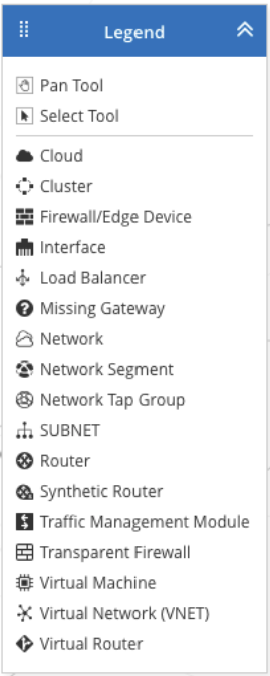

APA Icons

The APA results map includes the following icon types.
